Цифровой щуп утечки тока | Delta Logic
14 450,00₴
* цена товара указана без НДС
** цена может изменяться в зависимости от курса НБУ на дату выставления счета
Информация о продукте «Цифровой прибор утечки тока»
Цифровой прибор утечки тока 40Гц-1.000Гц, мин / макс, удержание данных. С сумкой для переноски, измерительными кабелями, 2 батареями 1,5 В, руководством пользователя.
Описание
Product information “Digital Leakage Current Clamp”

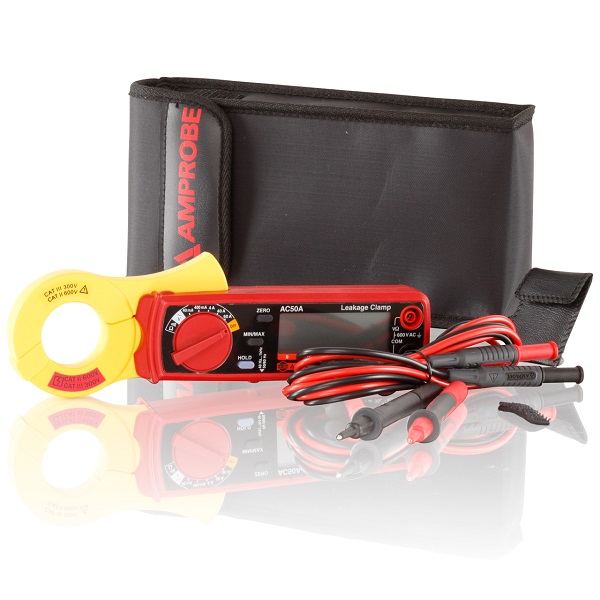

Digital leakage current clamp 40Hz-1.000Hz, Min/Max, Data Hold. With carrying case, measuring cables, 2 batteries 1,5V , user manual (recommended accessory for BC-700 and BC-600).
Technical Details
| Display: | 3-3/4, LCD incl. functions and symbols |
| Bargraph: | 40 segments |
| Range selection | manual |
| Auto-Power-Off: | approx. 30 min. |
| Overload display: | the left digit is blinking |
| Measuring rate: | 20 measurements/sec. (Bargraph) 2 measurements/sec. (LCD) |
| Clamp opening | ca. 30 mm (1.2″) |
| Overvoltage Categorie: | CAT II, 600 V, CAT III, 300 V |
| Battery display: | at low battery |
| Power supply: | Battery 2 x 1,5 V IEC LR6 (alkaline) |
| Current Consumtion: | approx. 10 mA |
| Operation temperature: | -10° C … 50° C (14° F… 122° F) |
| Storage temperature: | -20° C … 60° C (-4° F… 140° F) |
| Humidity: | < 75 % relative humidity |
| Dimension: | 183 x 63,6 x 35,6 mm ( 7.2 x 2.5 x 1.4 inch) |
| Weight: | ca. 190 g (7 oz) |
| Current AC |
|
| Range: | 0 – 40 mA Resolution: 10 μA Accuracy 50/60 Hz: ±(1,5 % rdg. +3 D) Accuracy 40 Hz … 1 kHz: ±(2,0 % rdg. +5 D) |
| Range: | 0 – 400 mA Resolution: 100 μA Accuracy 50/60 Hz: ±(1,5 % rdg. +3 D) Accuracy 40 Hz … 1 kHz: ±(2,0 % rdg. +5 D) |
| Range: | 0 – 4 A Resolution: 1 mA Accuracy 50/60 Hz: ±(1,5 % rdg. +3 D) Accuracy 40 Hz … 1 kHz: ±(2,0 % rdg. +5 D) |
| Range: | 0 – 40 A Resolution: 10 mA Accuracy 50/60 Hz: ±(1,5 % rdg. +3 D) Accuracy 40 Hz … 1 kHz: ±(2,0 % rdg. +5 D) |
| Range: | 0 – 50 A Resolution: 0,1 A Accuracy 50/60 Hz: ±(1,5 % rdg. +5 D) Accuracy 40 Hz … 1 kHz: ±(2,0 % rdg. +5 D) |
| Range: | 50 – 60 A Resolution: 0,1 A Accuracy 50/60 Hz: ±(3,0 % rdg. +5 D) Accuracy 40 Hz … 1 kHz: ±(3,5 % rdg. +5 D) |
| Voltage AC | |
| Range: | 0 – 400 V |
| Resolution: | 0,1 V |
| Accuracy: | 50/60 Hz: ±(1,0 % rdg. +3 D) 40 Hz … 1 kHz: ±(2,0 % rdg. ± 4 D) |
| Resistance | |
| Range: | 400 Ω |
| Resolution: | 0,1 Ω |
| Accuracy: | ±(1 % rdg. +3 D) |
| Overload Protection: | 600 V AC |
| Continuity | |
| Range: | Ω/*T |
| Resolution: | 0,1 Ω |
| Beep: | < ca.40 Ω |
| Open Circuit Voltage: | < 0,4 V |
| Overload Protection: | 600 V |
