ACCON-MPI-Адаптер RS-232

от имеет Комментарии к записи ACCON-MPI-Адаптер RS-232 отключены
Ноябрь 16, 2018

11 700,00

* цена товара указана без НДС
** цена может изменяться в зависимости от курса НБУ на дату выставления счета

Адаптер S7 для прямого доступа

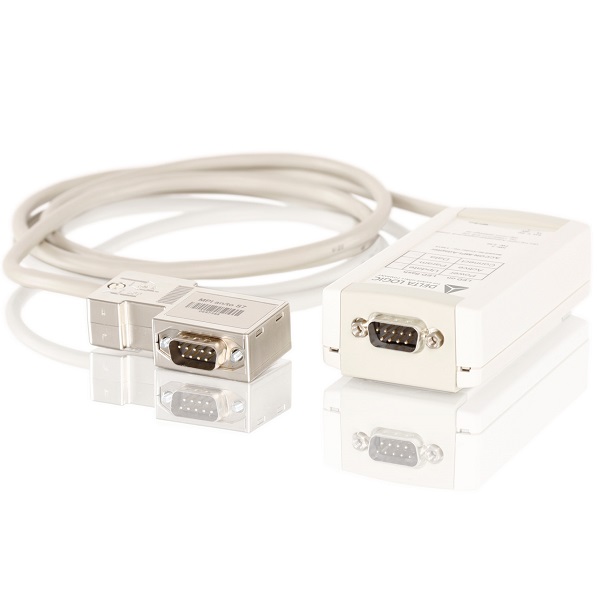

ACCON-MPI-адаптер позволяет подключать ПК к интерфейсу MPI S7 PLC через последовательный интерфейс ПК.

Артикул: ACCON-MPI-RS-232 Категории: ,

Описание

Product highlights

Low-cost solution for programming and visualizing
Serial transmission rate up to 115.2 Kbps
MPI speed up to 187.5 Kbps
Voltage supply from the CPU
External 24 VDC voltage feed possible

Product information “ACCON-MPI-Adapter RS-232”

A S7 adapter for the direct access

The ACCON-MPI-Adapter allows the connection of a PC to a S7 PLC’s MPI interface via the PC’s serial interface.

Perfect fields of application

As programming adapter to create and change the PLC program.
As communication adapter for visualizations
As communication adapter for accessing the PLC’s data

Varied ranges of application

Programming S7 PLCs with STEP 7
Connecting visualizations with S7 PLCs
Logging S7 data (e.g. with ACCON-S7-EasyLog)

Convincing and varied

The ACCON-MPI-Adapter RS-232 uses the same communication protocol like the PC Adapter. Thus, the ACCON-MPI-Adapter RS-232 can used with any software supporting the PC Adapter.
Instead of the ACCON-MPI-Adapter RS-232, the ACCON-MPI/TS-Adapter can be used. This one offers the advantage that it has a bushing to connect a further device. So, e.g. a panel can easily be connected.

Technical highlights

Low-cost solution for programming and visualizing
Serial transmission rate up to 115.2 Kbps
MPI speed up to 187.5 Kbps
Voltage supply from the CPU
External 24 VDC voltage feed possible

Technical Details

Connection to the PC RS-232 with 9-pin SUB-D bushing, via included null modem cable (ca. 2 m), max. 115.2 Kbps
Connection to the PLC 9-pin SUB-D plug, cable stationary mounted (ca. 1.2 m), max. 187.5 Kbps
Supported PLCs S7-300, S7-400
Weight in kg Ca. 0.18
Dimensions (W x H x D) in mm 54 x 105 x 30
Protection type IP 20
Supply voltage 24 VDC ±25 %
External voltage feed possible Yes
Power consumption 30 mA (typ.) / 45 mA (max.)
Operating temperature 0 °C to 60 °C
Storage/transporting temperature -20 °C to +60 °C
Allowed relative humidity Operating 5 % to 85 % at 30 °C, storage 5 % to 93 % at 40 °C
