Роутер MoRoS-HSPA | Delta Logic

от имеет Комментарии к записи Роутер MoRoS-HSPA | Delta Logic отключены
Ноябрь 16, 2018

33 800,00

* цена товара указана без НДС
** цена может изменяться в зависимости от курса НБУ на дату выставления счета

Универсальный подход к дистанционному обслуживанию

Маршрутизатор VPN MoRoS-HSPA – это компактное устройство в стандартном корпусе с корпусом из нержавеющей стали, сочетающее функции модема, маршрутизатора и коммутатора на одном устройстве. Таким образом, недорогое решение для удаленного обслуживания с несколькими совместимыми с Ethernet компонентами может быть просто настроено. К встроенному коммутатору можно подключить до четырех сетевых устройств, например контроллеров или систем HMI. Таким образом брандмауэр блокирует несанкционированный доступ к сети. Кроме того, поддерживая OpenVPN, зашифрованное и безопасное соединение настраивается через небезопасный Интернет. Используя наш бесплатный портал VPN Deltalogic24 , вы можете легко осуществлять дистанционное обслуживание через мобильное радио и интернет.

Артикул: EWR-UMTS-2 Категория:

Описание

Product information “MoRoS-HSPA”

The all-rounder regarding remote maintenance

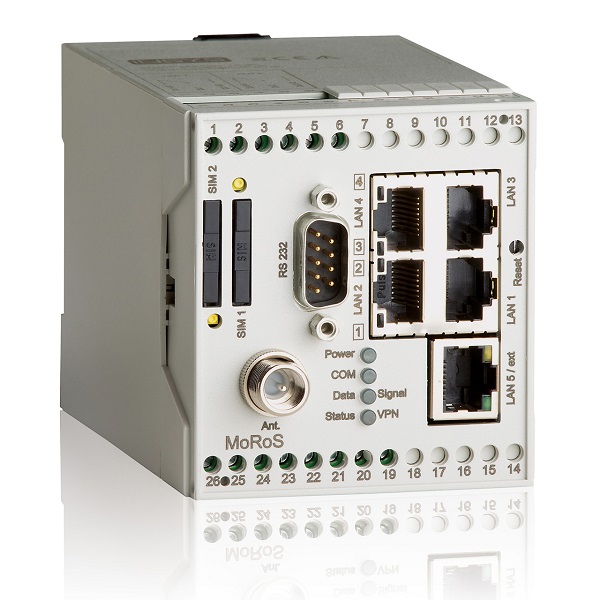

The VPN router MoRoS-HSPA is a compact device in an industry-standard top-hat rail case combining modem, router and switch functions in one device. Thus, a low cost remote maintenance solution with several Ethernet compatible components can quite simply be set up. You can connect up to four network devices to the integrated switch, e. g. controllers or HMI systems. Thereby, a firewall blocks unauthorized accesses to the network. Furthermore, by supporting OpenVPN an encrypted and secure connection is set up via the insecure internet. By using our free VPN portal Deltalogic24, you can effect the remote maintenance via mobile radio and internet very easily.

Perfect fields of application

The Monitoring-App extend your VPN router to an efficient fault indicating and monitoring system for S7- and Logo-PLCs. You get SMS and E-Mail messages about events inside your PLC.
For the secure remote access through the internet to Ethernet devices via TCP/IP.
For the remote maintenance of S7 PLCs via internet connection to the VPN router and the ACCON-NetLink-PRO compact that are connected there.

Varied ranges of application

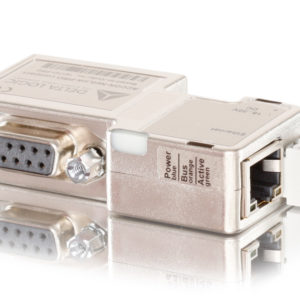

Together with the ACCON-NetLink-PRO compact, the VPN routers are ideal for the remote maintenance of S7-300 and S7-400 PLCs, together with ACCON-TeleService IE ideal for the remote maintenance of S7-300 and S7-400 PLCs with Ethernet or PROFINET interface.

Convincing and varied

The connection to the internet can either be effected via the integrated communication module (mobile radio) or via an additional Ethernet interface (e. g. via DSL or company network).
In order to use a secure VPN connection, we have established the VPN portal Deltalogic24 for you whose use is included free of charge in all VPN compatible routers we offer. Of course, you can use other VPN portals or your own VPN server, as well.

Technical highlights

  • Remote access to ethernet devices
  • Integrated 4 port switch
  • Firewall
  • Additional Ethernet interface for internet connections via DSL, company network etc.
  • Supporting OpenVPN
  • Secure remote maintenance via internet
  • Integrated communication module (UMTS and GSM)
  • Simple parameterization via web interface

Technical Details

Weight in kg 0.3
Dimensions (W x H x D) in mm 70 x 110 x 75
Supply voltage 10 to 60 VDC
Power consumption Max. 6.5 W
Operating temperature -30 °C to +70 °C
Allowed relative humidity 5 % to 95 % (no bedewing)
External LAN RJ45, 10/100 Mbps, full-/half duplex, TCP/IP, UDP/IP, PPPoE for DSL modem
Router function DHCP server, Full NAT (Port forwarding), DNS relay, DynDNS support, VPN (OpenVPN server and client), Firewall, PPPoE-Dial-Out
Router dial filter On the basis of IP addresses and ports (PPPoE/DSL, GPRS/UMTS)
Switch 4 x RJ45; 10/100 Mbps for full and Half duplex operation, auto-crossing, auto-negotiation, auto-polarity, port mirroring
Configuration Local and remote access via web interface
Additional features Local and remote access for firmware update, serial-ethernet-gateway, hardware watchdog
Dual SIM Yes
Data transfer GSM GPRS, EDGE
Data transfer UMTS HSDPA
Supported GSM supply frequencies 850 MHz, 900 MHz, 1800 MHz, 1900 MHz
The wave bands 850 MHz and 1900 MHz are deactivated due to FCC regulations. In order to activate the wave bands, please contact the DELTALOGIC support.
Supported UMTS supply frequencies 2.100 MHz
UMTS Duplex mode W-CDMA FDD
Antenna connection FME bushing
