VPN маршрутизатор SCR300-LTE | Delta Logic

от имеет Комментарии к записи VPN маршрутизатор SCR300-LTE | Delta Logic отключены
Ноябрь 15, 2018

17 820,00

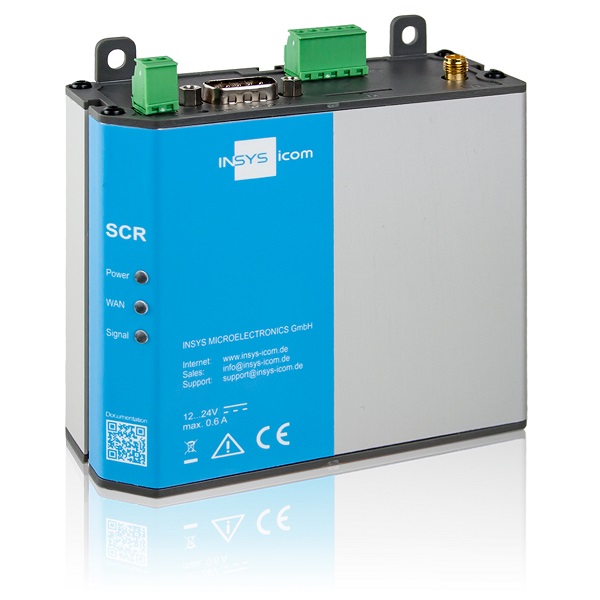

Профессиональный маршрутизатор LTE SCR-L300 – это интеллектуальное, компактное и универсальное устройство для ваших приложений M2M и IoT.
Помимо двухпортового коммутатора, сотовый маршрутизатор LTE также обеспечивает интерфейс RS232 для подключения последовательных устройств непосредственно к маршрутизатору и, таким образом, их интеграции в IP-сети. Датчики, приводы и аналогичные устройства могут быть подключены через два цифровых входа и два цифровых выхода. С интегрированной icom SmartBox, средой Linux на основе технологии LXC, маршрутизатор предоставляет независимую от операционной системы платформу, например, для локального хранения и обработки данных или выполнение дополнительных программ и сценариев (краевые вычисления).

Артикул: SCR300-LTE Категория:

Описание

Product highlights
  • Compact, flat housing
  • Installation in distribution boxes and switch cabinets
  • Dynamic routing
  • Wall and DIN rail mounting
  • Interfaces for IP-capable and serial devices
  • Stateful firewall also in VPN tunnel
  • Strenghtened operating system
  • Integrated Linux environment for edge computing (icom SmartBox)
  • PPPoE for external ADSL modem
Product information “VPN router SCR300-LTE”

The professional LTE router SCR-L300 is a smart, compact and versatile device for your M2M and IoT applications.

Besides a 2-port switch, the cellular LTE router also provides an RS232 interface for connecting serial devices directly to the router and thus integrating them into IP networks. Sensors, actuators and similar devices can be connected via two digital inputs and two digital outputs With the integrated icom SmartBox, a Linux environment based on LXC technology, the router provides an operating system-independent platform, for example for local storage and processing of data or executing further programs and scripts (edge computing).

Technical Details
Mobile comunication

Frequency bands

4G/LTE:                 700, 800, 900, 1.800, 2.100 MHz (bands 1, 3, 8, 20, 28)
LTE Cat. 1 (DL: max. 10.2 Mbps, UL: max. 5.2 Mbps)
2G/GPRS/EDGE:   900, 1.800 MHz; GPRS/EDGE Class 12 (DL: max. 85.6 kbps, UL: max. 85.6 kbps)
Antenna connection 1 x SMA female

SIM

Slot for 1 Mini-SIM card (2FF), locked

Router

Function

Up to 5 IP networks local (LAN) or as WAN, VLAN incl. tags and trunk ports; own DHCP server per IP
network, static routing, routing priority configurable; dynamic routing OSPF, BGP, RIP, RIPv2, RIPng;
netfilters: DNAT, SNAT, IP/port forwarding, netmapping, DNS relay, dynDNS support
Security OpenVPN (client and server), IPsec, GRE (incl. multi-port), DMVPN, IP filters (stateful firewall) also in VPN
tunnel, several VPN tunnels in parallel possible, MAC filters, PPTP server
Redundancy WAN chains: several WAN accesses configurable (prioritised and event-controlled), WAN groups: parallel
operation of WAN interfaces or VPNs, several OpenVPN servers
Dual APN (cellular only): traffic division across 2 APNs – e.g. for separating payload and management data
Ethernet switch, interfaces
Ports 2x RJ45, 10/100 MBit/s, full/half-duplex, auto MDI-X, 1.5 kV isolation voltage
Function Each port can be freely assigned to the IP networks, Link up/down detection, configuration port
I/O variant 2 digital inputs, high-active (as per EN 61131-2, Type 1)
2x open collector outputs (24 V/100 mA)
Events (selection) Change: input, Ethernet port, WAN chain, profile, supply input, cellular field strength; timer expiry, firewall violation, login attempt detection, pulse sequence at digital input, counter
Event-controlled actions (selection) Messages via e-mail, SMS (only cellular variant), SNMP traps, MCIP;
switching profile, switching connection, changing modem state, starting timer, switching output or pulse
sequence, activating firmware, reset, restart SmartBox container
Serial interface
RS232 (Serial1) 1 x RS232 / D-Sub-9 (m)
Functions Serial-Ethernet gateway (incoming and outgoing connections, Modbus TCP/RTU gateway, modem
emulation, editable AT answer list, phone number conversion to IP addresses), PPPoE for external ADSL
modem
Operation
Wizards Configuration of connection incl. VPN, adding LAN networks, quick start of DELTA LOGIC Connectivity Server – VPN
Help Web interface with inline help texts, online help, FAQ, exemplary profiles, plausibility check
Configuration Local and remote web interface (http, https; with session management), command line interface (CLI),
Telnet, SSH, ASCII and binary file (also for backup), configuration management with switchable profiles
(event-controlled)
Indications (LEDs) Power, WAN (Internet connection), Signal (for cellular radio)
Authentication Several users, different user roles and rights, certificate-based authentication with revocation list
Diagnosics SNMP traps and agent, configurable system logs, remote syslog, support packet, help functions
Diagnosis tools: ping, tcpdump, traceroute, DNS lookup, AT commands
Firmware updates Incremental, fail-safe, automated via update server (http, ftp, https, ftps)
System time NTP client and server, real-time clock
Edge Computing
icom SmartBox Linux programming environment: creation of LXC containers for programs and scripts (apps),
ARMv7 CPU, 448 MB RAM, 7 GB flash memory
Supply
Voltage 12 … 24 V DC (± 20%)
Terminals 2-pin terminal connectors, rigid/flexible conductors up to 2.5 mm2
Power consumption typical approx. 2.5 W, max. 6.0 W
Sleep mode: typical approx. 55 mW
Sleep mode Sleep mode: Energy conservation mode with event-triggered activation, stopping via timer, reset or
re-establishing supply
Ambient conditions
Dimensions (WxDxH) Industrial distribution box (switch cabinet): 41.5 x 105 x 90 mm
Building distribution box:                          105 x 41.5 x 90 mm
Operating temperature -30…+70 °C, -30…+75 °C
under restricted conditions (refer to www.insys-icom.com/restricted)
Humidity 0…95% (non-condensing)
Mounting / protection class DIN rail mounting / housing: IP40, terminals: IP30
Approvals & Standards
Certifications CE
EMC Emission: EN 55032 Class B; Immunity: EN 61000-6-2, EN 55024
Security IEC 62368-1
Environmental conditions Temperature tests as per EN 60068-2-1, EN 60068-2-2, EN 60068-2-14, EN 60068-30
