Адаптер ACCON-S5-LAN | Delta Logic
18 075,00₴
* цена товара указана без НДС
** цена может изменяться в зависимости от курса НБУ на дату выставления счета
Адаптер для подключения к PLC S5

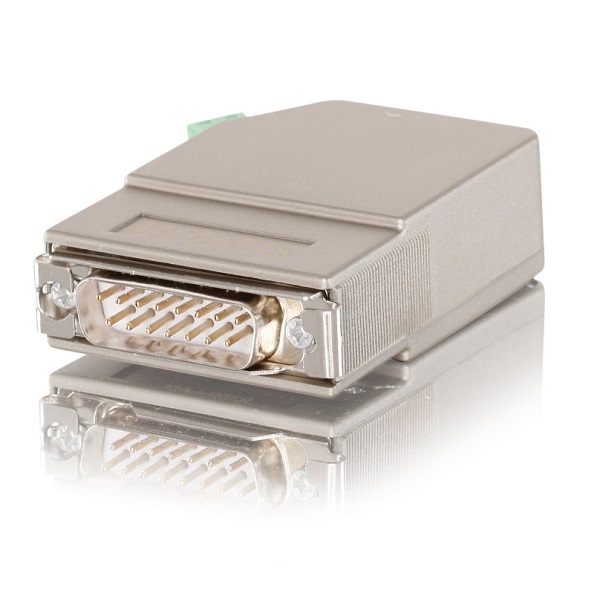

ACCON-S5-LAN – это адаптер соединения между ПК и PLC S5 через TCP / IP. Он питается интерфейсом PLC, внешний источник питания не требуется.
Описание
Product highlights
Compact connection of S5 PLCs to ethernet
Quick and simple configuration and bringing into service
Integrated multiplexer for simultaneous programming and visualization
Access via virtual COM port
Access via S5-TCP/IP (RFC 1006)
Access via S7-TCP/IP (RFC 1006)
Product information “ACCON-S5-LAN”
The pro for connections to S5 PLCs
ACCON-S5-LAN is a connection adaptor between a PC and a S5 PLC via TCP/IP. It is fed by the PLC’s interface, an external power supply is not necessary.
Perfect fields of application
As programming adaptor to create and change the PLC program
As communication adaptor for visualizations
As communication adaptor for accessing the PLC’s data
Varied ranges of application
Programming a S5 PLC, e.g. with ACCON-PG or the Siemens STEP 5 software.
Visualising values of a S5 PLC with the DELTALOGIC S7/S5-OPC Server via TCP/IP.
Convincing and varied
In order to visualize and program simultaneously, the ACCON-S5-LAN has an integrated multiplexer.
With the included software, a virtual serial interface can be installed on the PC. Each software supporting a serial connection to the S5 PLC can therefore use the ACCON-S5-LAN.
Furthermore, the ACCON-S5-LAN supports the S5-TCP/IP (RFC 1006) protocol as well as the S7-TCP/IP (RFC 1006) protocol. Thus, the ACCON-S5-LAN can be used with all programs supporting these protocols without additional driver.
Technical highlights
Compact connection of S5 PLCs to ethernet
Quick and simple configuration and bringing into service
Integrated multiplexer for simultaneous programming and visualization
Access via virtual COM port
Access via S5-TCP/IP (RFC 1006)
Technical Details
| Supported operating systems | No limitations (the driver for a virtual serial interface is for Windows 98SE, Me, NT, 2000, XP, Vista, 7, 8, 8.1, 10 (32 bit and 64 bit)) |
| Connection to the PC | RJ45 bushing for Ethernet 10/100 Mbps with automatic detection, no cable included in delivery |
| Connection to the PLC | TTY with 15-pin SUB-D plug |
| Supported PLCs | S5 of the U-series |
| Dimensions (W x H x D) in mm | 42 x 15 x 65 |
| Protection type | IP 20 |
| Supply voltage | 24 VDC from PLC interface Not possible with AG 90 and AG 95, external power supply necessary |
| External voltage feed possible | Yes |
| Power consumption | Max. 80 mA |
| Galvanically isolated | No |
| Integrated multiplexer | Yes |
